Craft Architecture

Craft adds an untrusted code-execution environment to Onyx. Onyx controls the sandbox lifecycle, keeps credentials outside the sandbox, and mediates access to company knowledge, external services, and generated web apps.

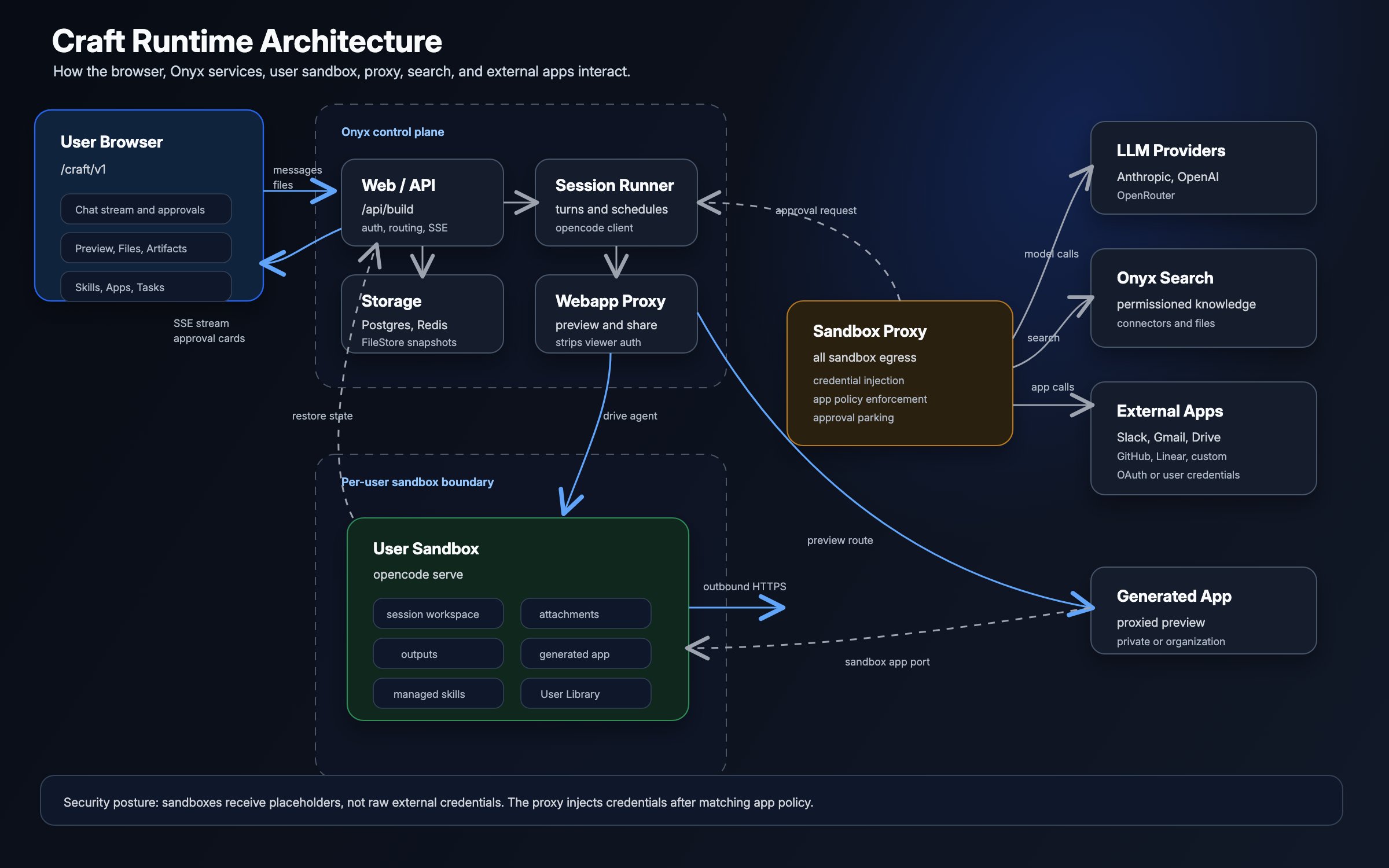

Craft runtime architecture showing the browser, Onyx control plane, per-user sandbox, sandbox proxy, model providers, search, external Apps, and generated web apps

Components and trust boundaries

Component	Role and access
Browser	Sends prompts and files, receives the event stream, shows approvals, and renders generated web apps.
Onyx control plane	Authenticates users, checks access, manages sessions and sandboxes, stores state, and proxies generated web apps.
Per-user sandbox	Runs model-generated code and tools. Each Craft session has a separate workspace inside the user’s sandbox.
Sandbox proxy	Receives sandbox HTTP and HTTPS traffic, blocks internal destinations, injects credentials, and enforces App policies.
Onyx storage	Stores session records, approvals, tasks, encrypted credentials, uploaded files, Skill bundles, and snapshots.
External services	Model providers, public websites, and configured Apps receive outbound requests through the sandbox proxy.

The sandbox is the untrusted boundary. It receives the files and instructions needed to complete work, but not raw Onyx, model-provider, or App credentials.

Request lifecycle

Onyx authorizes the request

The browser sends the prompt, attachments, model choice, and selected capabilities to the Onyx API. Onyx checks the user’s Craft and model access.

Onyx prepares the workspace

Onyx creates or restores the user’s sandbox, creates a directory for the session, and synchronizes the Skills and User Library files available to that user.

The agent runs in the sandbox

The sandbox calls the selected model, runs code and tools, and writes files into the session workspace. Onyx streams agent events back to the browser.

Network requests pass through the proxy

The sandbox proxy identifies the sandbox and session, blocks internal destinations, and injects credentials or requests approval when the destination requires it.

Onyx serves the result

Users inspect and download files through authenticated Onyx APIs. Onyx proxies generated web apps from the sandbox after checking the app’s sharing scope.

Sandbox and workspace isolation

Craft maintains one sandbox per user and a separate workspace for each session. The workspace contains attachments, generated code, intermediate files, outputs, and the session’s agent instructions. Skills and User Library files are synchronized into a managed area of the sandbox and linked into each session. Attachments belong only to their session, while User Library files remain available across the user’s sessions. Skill bundles can contain executable scripts, so they should be reviewed as code before being shared. When a sandbox becomes idle, Onyx snapshots its session state to the configured file store and stops the runtime. Onyx restores that state when the user returns. Snapshots support sleep and restore; they are not user-facing version history.

Backend	Isolation boundary
Kubernetes	A sandbox pod in a dedicated namespace, with scoped RBAC, an in-pod firewall, and NetworkPolicies.
Docker Compose	A sandbox container on a dedicated bridge, with an in-container firewall and no connection to the default Compose network.

The Docker backend requires read-write Docker socket access from the API server and background worker. This access is effectively root access to the host, which is why Docker Compose is intended for small deployments on a trusted host.

Network egress

The sandbox firewall permits DNS and the sandbox proxy path. Sandbox HTTP and HTTPS requests do not have a second, direct route to the network. The proxy applies different behavior based on the destination:

Destination	Proxy behavior
Onyx API	Allows the configured API host and port and injects the sandbox’s scoped Onyx credential.
Supported model provider	Injects an accessible provider key for Anthropic, OpenAI, or OpenRouter.
Configured App	Matches the URL and action, applies its policy, then injects organization or user credentials.
Other public destination	Forwards the request without privileged credentials or an App approval.
Private or non-global destination	Blocks the request, including loopback, private networks, link-local addresses, and cloud metadata. The configured Onyx API is the exception.

The proxy is an egress control and credential boundary, not a public-internet allowlist. Craft can browse websites and install packages from public destinations without an App connection.

Kubernetes adds NetworkPolicies as a second control around sandbox-to-proxy and DNS traffic. Docker sandboxes use a dedicated bridge that cannot resolve or reach Onyx’s Compose services by name. See the Kubernetes and Docker Compose deployment guides for operator requirements.

Credential handling

The sandbox receives placeholder values for credentials that Onyx manages. The proxy resolves the sandbox identity, retrieves the correct credential, and adds it only to a matching outbound request.

Credential	Stored by Onyx	Injected for
Onyx sandbox credential	Encrypted with the sandbox record	The configured Onyx API host and port
Model provider key	With the user’s accessible provider configuration	The matching supported model-provider host
App credential	Encrypted organization or per-user App credential storage	URLs attributed to that App

Raw credentials exist in Onyx-controlled storage and briefly in proxy memory while a request is prepared. They are not written into the sandbox workspace, Skill bundle, or generated files by the injection process.

Company knowledge

Craft searches company knowledge through the Onyx API rather than connecting the sandbox directly to the vector database or indexed sources. Onyx evaluates the request as the sandbox owner and applies that user’s document permissions. Enabling Craft, sharing a Skill, or connecting an App does not expand the user’s indexed document access. Search results can still become part of a prompt, generated file, or web app, so users must review outputs before sharing them.

Apps and approvals

Requests attributed to an App use the policies configured by an Admin:

Policy	Enforcement
Auto-approve	The proxy forwards the matched action without pausing.
Ask	The proxy parks the request until the user approves or rejects it.
Deny	The proxy blocks the request.

For an Ask action, the approval flow is:

Park the request

The proxy stops the request before injecting App credentials.

Request a decision

Onyx sends an approval card to the session. The user approves once, approves matching actions for the session, or rejects the request.

Forward or block

The proxy forwards an approved request with credentials, or fails the request closed after rejection or expiry.

If a request matches multiple built-in App actions, the strictest policy wins: Deny, then Ask, then Auto-approve. An uncataloged request to a built-in App falls back to Ask. Custom Apps use Ask for every request matching their configured URL patterns. Scheduled Tasks have no user present to answer an approval. A task owner can pre-approve an App for that task; this permits the App’s Ask actions during the run. Pre-approval does not override Deny and applies to the whole App, not one action.

Generated web apps

Onyx serves generated web apps through an authenticated proxy instead of exposing sandbox ports directly. The proxy checks the session’s sharing scope before forwarding a request:

Scope	Access
Private	Session owner only
Organization	Authenticated users in the Onyx workspace

Sharing exposes the generated web app, not the Craft conversation or the session’s file browser. However, information written into the app itself is visible to everyone who can open it. Before sending a request to the generated app server, the proxy removes the viewer’s cookies, authorization headers, CSRF headers, forwarding headers, and identity headers. It also strips set-cookie from the generated app’s response. The preview runs in a sandboxed iframe, with scripts, forms, and user-initiated navigation enabled.

Generated client-side code runs in the viewer’s browser. Browser-side requests are not sandbox egress and do not pass through the sandbox proxy. Review a generated app before sharing it with the organization.

State and operational data

Store	Craft data
PostgreSQL	Sessions, sandbox records, sharing state, approvals, App configuration, tasks, and encrypted credentials
Redis	Streaming coordination, approval signaling, locks, and short-lived caches
File store	Attachments, User Library content, Skill bundles, and sandbox snapshots
Active sandbox storage	Session workspaces, generated files, agent state, and running web apps

Treat Craft logs and traces as potentially sensitive. Depending on logging configuration, they can include prompts, file names, URLs, tool results, model interactions, and approval metadata.

Security considerations

Risk	Mitigation
Model-generated code behaves unexpectedly	Keep the sandbox boundary and proxy controls intact; review outputs before using or sharing them.
A Skill contains unsafe instructions or scripts	Review custom Skill bundles before granting broader access.
A user approves an unintended App action	Keep consequential actions on Ask or Deny and make Scheduled Task pre-approvals narrow.
Generated content includes sensitive company data	Document permissions protect retrieval, but users remain responsible for generated files and shared web apps.
Prompts and context leave Onyx	Review the data handling terms and configuration of each model provider and external App.
Docker socket compromise affects the host	Use Kubernetes for broader deployments and restrict Docker Compose to trusted, controlled hosts.
